Bandra-Worli Sea Link

Posted on by
Reply


India opens the gates of its first sea bridge

Nearly five decades after it was conceived, India’s first sea bridge opens its toll gates in the country’s commercial and entertainment capital later Tuesday, promising to cut travel time by 80 percent to just eight minutes, bypassing 23 traffic signals that commuters have to presently endure.


Called the Bandra-Worli Sea Link (BWSL), the 5.6-km bridge on the Arabian Sea has costed Rs.1634-crore ($325 million) and the authorities hope to see some 150,000 vehicles use it each day for a toll that ranges between Rs.50 and Rs.100 per trip depending on the size of the automobile.

United Progressive Alliance (UPA) chairperson Sonia Gandhi is slated to inaugurate the gleaming new sea link, which has been billed as an engineering marvel and the most prestigious project for the Maharashtra State Road Development Corp (MSRDC) in over a decade, after the Mumbai-Pune Expressway.And Mumbaikars are visibly excited, including a galaxy of actors, corporate honchos and the average commuter, as the sea link has surpassed all other projects of the state-run firm in terms of its sheer beauty, grandeur and the attention that it has grabbed from the whole country in the past few months.

Helen, well-known actor and dancing star of yester years, told IANS.”I have read a lot about how it will solve the traffic problems in Mumbai. I plan to go for a drive there soon,” added her husband and legendary scriptwriter Salim Khan, whose apartment facing the Arabian Sea is right opposite the sea link.In fact, several Bollywood personalities – Shah Rukh Khan, Rekha, Subhash Ghai, Farhan Akhtar, A. Krishnamurthi and others – live on the promenade facing the Bandra-Worli Sea Link and most get either a balcony view or a terrace view of the magnificent bridge.

“We have been seeing the bridge come up from the construction stage and are happy that it is finally completed. It will be a great boon to the city,” said Krishnamurthi, head of Tina Films International, who can view it from the comforts of his living room.Businessman Pratap S. Bohra, who lives in Juhu, said he had long abandoned his office in Nariman Point on account of the time wasted in the traffic.”We kept hearing about the sea link. Now that it is ready, I am seriously planning to attend my office in south Mumbai.

We hope the second phase from Worli to Nariman Point will be taken up soon,” said Bohra, who opened another office in Santacruz, a western suburb.Others like Priyanka Uke, an executive living in Dadar, plans to commute daily on public transport using the sea link to Andheri. “I am dying to go as soon as the bus routes that will go via the sealing are announced,” she said.Some, like jeweller V.S. Shrikrishna, are disappointed that two-wheelers shall not be permitted on the sea link. “To save time, I may go by car. But then again, I have to shell out a toll,” he said, a tad confused about his commuting plans.

A commuter by car, for instance, would have to pay toll of Rs.50 for a single trip, Rs.75 for a round trip, Rs.125 for a daily multiple-entry-exit pass and Rs. 2,500 for a similar pass for a month. The toll may be hiked in the future.

Well-known advocate J.P. Mishra is another who plans to make full use of the BWSL.”It’s simple. Until now I used to go by train for hearings in the Bombay High Court. Now I can take my car and go by the bridge. It’s more convenient as I don’t have to wait for taxis after getting off the train,” Mishra said.For the past three nights, the state-run company had built up the tempo for the bridge’s inauguration with spectacular multi-colour laser shows and fire works that was visible from long distances from the northern, western and southern parts of the city.

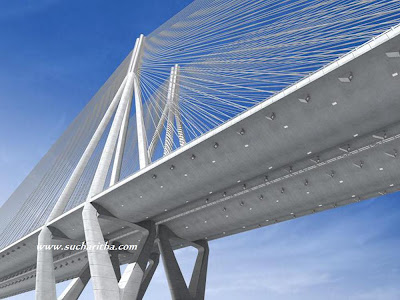

The evenings presented a breath-taking view when the bridge was lit up. And at dusk when the lights went on, a viewer from the existing Mahim Causeway of the colonial era was able to see a huge pyramid-like structure above the dark waters of the Arabian Sea.The two cable bridges, one 500 metres long on the northern side and another 350 metres long on the southern side, allow the passage of fishing boats.

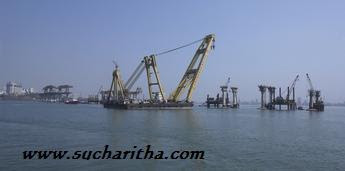

The bridge rests on two towers, each 126 metres tall or as high as a 43-storey building, that appear hazily in the monsoon mist.People were seen craning their necks to get a glimpse of the towering bridge even when the suburban trains sped past the Mahim Creek Bridge between Mahim and Bandra.The bridge – which was conceived in 1963 but contracted to the private sector Hindustan Construction Corp only in 2000 – encompasses some of the most modern security systems, including electronic eyes on the top and underneath, the authorities said.

They said the project involved some 3,000 professionals from 11 countries, including China, Egypt, Singapore, Thailand, and even Serbia and Switzerland. The bridge, that used 40,000 tonnes of steel and 90,000 tonnes of concrete, weighs 270,000 tonnes.


AKASHI KAIKYO BRIDGE ; AKASHI STRAIT

Posted on by
Reply

WORLD’S LONGEST SUSPENSION BRIDGE
10 YEARS OF CONSTRUCTION
3 DECADES OF PLANNING
4 BILLION DOLLAR INVESTMENT

Vital Statistics:
Location: Kobe and Awaji-shima, Japan
Completion Date: 1998
Cost: $4.3 billion
Length: 12,828 feetType: Suspension
Purpose: Roadway
Materials: Steel
Longest Single Span: 6,527 feet
Engineer(s): Honshu-Shikoku Bridge Authority

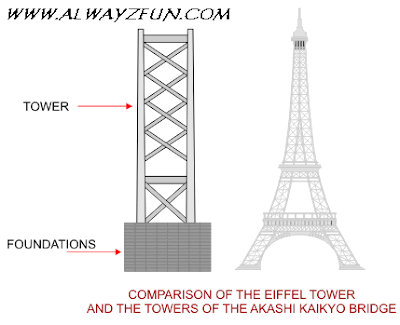

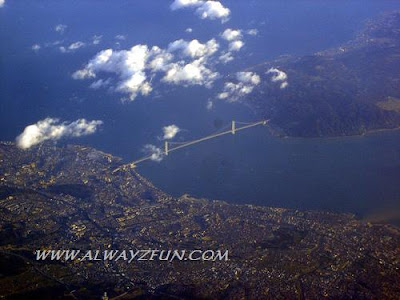

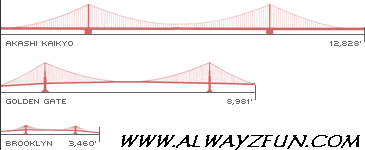

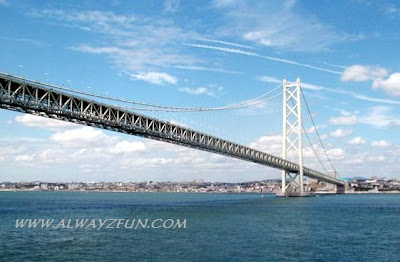

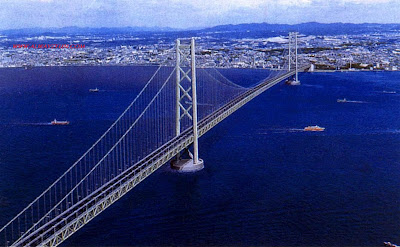

In 1998, Japanese engineers stretched the limits of bridge engineering with the completion of the Akashi Kaikyo Bridge. Currently the longest spanning suspension bridge in the world, the Akashi Kaiko Bridge stretches 12,828 feet across the Akashi Strait to link the city of Kobe with Awaji-shima Island. It would take four Brooklyn Bridges to span the same distance! The Akashi Kaikyo Bridge isn’t just long — it’s also extremely tall. Its two towers, at 928 feet, soar higher than any other bridge towers in the world.

The Akashi Strait is a busy shipping port, so engineers had to design a bridge that would not block shipping traffic. They also had to consider the weather. Japan experiences some of the worst weather on the planet. Gale winds whip through the Strait. Rain pours down at a rate of 57 inches per year. Hurricanes, tsunamis, and earthquakes rattle and thrash the island almost annually.

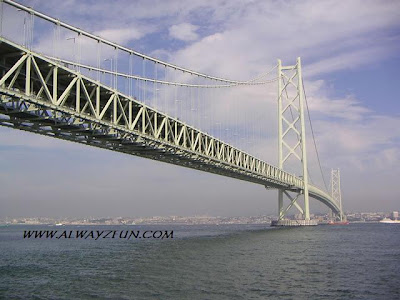

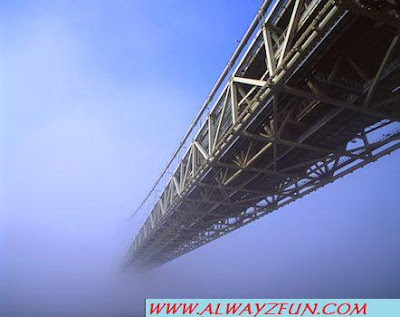

How did the Japanese engineers get around these problems? They supported their bridge with a truss, or complex network of triangular braces, beneath the roadway. The open network of triangles makes the bridge very rigid, but it also allows the wind to blow right through the structure. In addition, engineers placed 20 tuned mass dampers (TMDs) in each tower. The TMDs swing in the opposite direction of the wind sway. So when the wind blows the bridge in one direction, the TMDs sway in the opposite direction, effectively “balancing” the bridge and canceling out the sway. With this design, the Akashi Kaikyo can handle 180-mile-per-hour winds, and it can withstand an earthquake with a magnitude of up to 8.5 on the Richter scale!

Fast Facts:

The bridge is so long, it would take eight Sears Towers laid end to end to span the same distance. The length of the cables used in the bridge totals 300,000 kilometers.
That’s enough to circle the earth 7.5 times!
The bridge was originally designed to be 12,825 feet.
But on January 17, 1995, the Great Hanshin Earthquake stretched the bridge an additional three feet.
The bridge holds three records: it is the longest, tallest, and most expensive suspension bridge ever built.
